Phone Dialer
- GSM 4G connectivity
- 3.5" touch screen display
- 8 configurable balanced inputs
- 4 NC/NO relay outputs
- Power supply from 10V to 30V
- Multi-operator SIM integrated
- Tamper protection against enclosure opening or tearing off the wall.
- Temperature reading

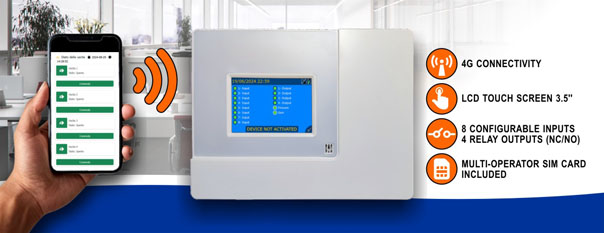

The DS500 is the new phone dialer dedicated to remote security and automation sector.
The device connects to the GSM network via an included high-gain internal antenna, which ensures high-end sensitivity in the 4G frequency.
Finally, the family of devices is completed by several extension cards that can be connected to the DS500 via an I2C port. Extensions allow the user to have more input, or output, or more of both.
Firecom.live is our device management portal!
Firecom.live
With our platform, you can keep track of your entire family of registered devices; and in addition to monitoring the status of your devices, you will also have the ability to:- Remotely activate or deactivate devices: no matter where you are, you can manage access to your devices even from your smartphone.
- View complete details about the status of your devices: you will have every detail under control, from input status, to network connection.
- Change device settings remotely: customize your preferences without having to physically touch your devices.
- Manage your devices from your account: if a device no longer serves you, you can remove it quickly and securely; you will also be able to describe it to distinguish it from any other.
- Renew your annual SIM subscription: keep your devices connected seamlessly, with the ability to renew your SIM directly from your account!
Device Main Menu
Device List
Section | Characteristics | Min | Typ | Max | Unit |
---|---|---|---|---|---|
Main Power Supply | Supply Voltage | 10 | 24 | 30 | V |
Current Consumption | @24 V | - | 60 | - | mA |
Inputs[1] | Maximum Voltage | - | - | 35 | V |
Unbalanced Input | Positive Activation | 4 | - | - | V |
Negative Activation | - | - | 2 | V | |
Single Balancing | Inactive | 1200 | - | 6800 | Ω |
Open | 9100 | - | - | Ω | |
Alarm | - | - | 910 | Ω | |
Double Balancing | Inactive | 3000 | - | 18000 | Ω |
Open | 20000 | - | - | Ω | |
Short Circuit | - | - | 620 | Ω | |
Alarm | 680 | - | 2400 | Ω | |
Double Balancing NC | Inactive | 1800 | - | 3300 | Ω |
Open | 20000 | - | - | Ω | |
Short Circuit | - | - | 1200 | Ω | |
Alarm | 3900 | - | 18000 | Ω | |
Outputs | Inactive | - | - | 30 | W |
Open | - | - | 60 | Vdc | |
Short Circuit | - | - | 125 | Vac | |
Alarm | - | - | 100 | mΩ |
Communications | |
---|---|
GSM | 4G |
